Out of Stock

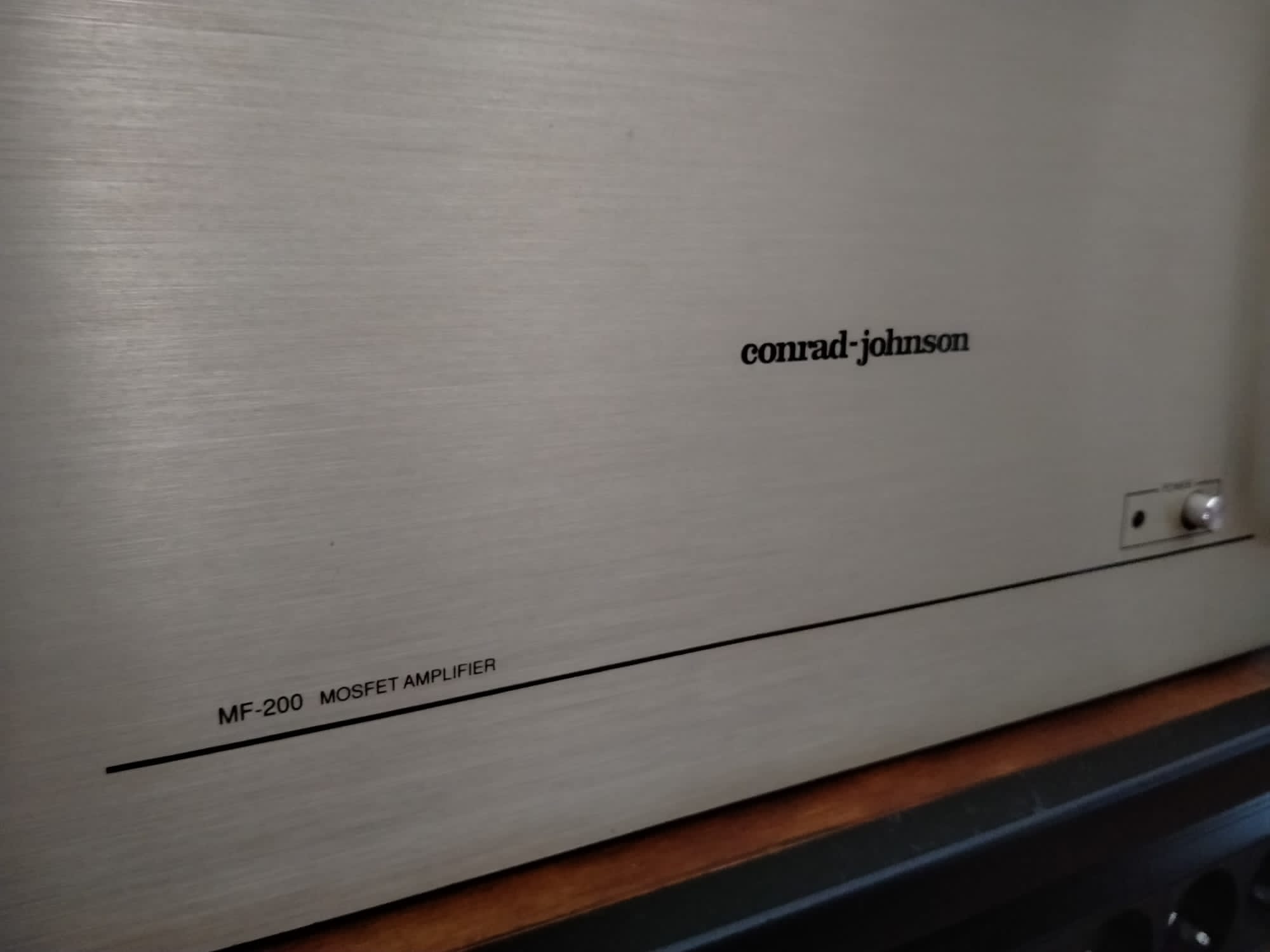

Conrad Johnson MF200 MOSFET Power Amp

, , , ,

Vintage CJ

£3,000.00 £1,450.00


Call Choice Hifi on 020 8392 1959 or to enquire about this product!


Enquire

The MF80 was the first solid state power amplifier bearing the conrad-johnson name. It was soon followed by the very similar, but more powerful, MF200 FET.
These amplifiers were the result of more than a decade of research by conrad-johnson into the application of solid-state devices to the reproduction of music.
The MF80 & MF200 used a similar circuit and differed in their power output-the MF80 delivered 80 watts per channel RMS & the MF200 delivered 200 watts per channel RMS. FET’s (Field Effect Transistors) were chosen as the basic circuit element of these designs because of their absence of the annoying odd-order harmonics that plagued so many transistor designs. Minimal negative feedback was used which obviated the typical overshoot and ringing associated with the “transistor sound” of other amplifiers. Parts specification met cj quality standards throughout. All capacitors were polypropylene and cjd polystyrene with the exception of the power supply filter caps. All resistors were 1% metal-oxide deposited on glass construction.

Brand: Conrad Johnson

Model Name/Number: MF200

Price (RRP): £3000

Choice Hifi Price: £1450

Product Information:

Specifications

Power:

MF80 – 80 watts per channel from 20Hz to 20KHz with no more than 1% THD or IMD, both channels driven into 8 ohms.

MF200 – 200 watts per channel from 20Hz to 20KHz with no more than 1% THD or IMD, both channels driven into 8 ohms.

Specifications:

Input Sensitivity: MF80 – 1.3V | MF200 – 2.2V
Frequency Response (at 10 Watts): 20 Hz to 20 kHz, +0, -.5 dB
S/N Ratio: MF80 96 dB, MF200 98dB relative to rated power

Mechanical:

Dimensions (MF80) – 19″ X 5″ x 12.63″
Dimensions (MF200) – 19″ X 8″ X 15.63″

Weight: MF80 – 38 lbs. | 50 lbs.

Age: 31 Years

Condition: 10/10

Voltage: 220/240/50Hz

Finish/Colour: Gold facia

Packaging? Yes

Accessories? N/A

Item Location: In Stock

Status: Second Hand

Dimensions 5708473 cm
