Proceed (By Madrigal) PDP2

, , ,

Lovely condition totally original Proceed PDP2 D?A converter.
The baby brother to the Mark Levinson 36 of the day at a fraction of the price.

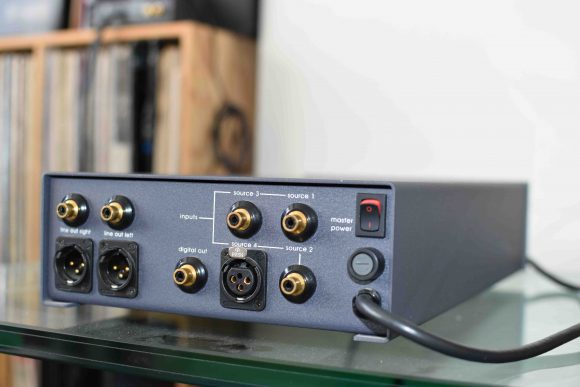

Balanced and single ended out, RCA Digital out, 4 digital inputs (3x RCA, 1 AES/EBU)
Complete with original box.

£350.00


Call Choice Hifi on 020 8392 1959 or to enquire about this product!


Enquire

PROCEED DAC by the MADRIGAL Group more famous for the MARC LEVINSON brand.

Brand: Proceed

Model Name/Number: PDP 2 DtoA Converter

Choice Hifi Price: £350

Product Information:

Specifications

  • Frequency response: 10 Hz – 20 kHz +0dB -0.2dB
  • Total harmonic distortion (THD):  0.004% @ 1 kHz 0dB
  • Dynamic range:  104dB (or better)
  • Signal-to-noise ratio: 107dB
  • Channel separation: 120dB
  • Intermodulation distortion (SMPTEIMD): 0.008%
  • Digital-to-analog conversion: Two precision 20-bit DACs
  • Filtering: 8x oversampling digital filter Analog filter, linear phase to 40 kHz
  • Low-level linearity: Deviation unmeasurable to below -70dB, approximately +1.0dB below -90dB (undithered, ref 0dB @ 1kHz)
  • Output impedance: <1Ω
  • Mains voltage: 120 V U.S. service   @ 120V, 60 Hz
  • Mains frequency: 50/60 Hz
  • Power consumption: 25W
  • Shipping weight: 22 lbs/9.98 kgOverall dimensions■ Width: ■ Height: ■ Depth:
  • 8.4 in/214 mm 3.4 in/87 mm 15.625 in/397 mm



Age: 23

Condition: 9/10

Voltage: 220/240/50Hz

Finish/Colour: Silver

Packaging? N/A

Accessories? N/A

Item Location: In Stock

Status: Second Hand
