Sale

Spectral DMC12 (MM/MC)/ DMA100

, , , , ,

Mint condition, x-demo, very light use.

including optional mm/mc phono stage

£10,200.00 £5,990.00


Call Choice Hifi on 020 8392 1959 or to enquire about this product!


Enquire

Spectral products blend high technology with hand craftsmanship of an incomparable standard. The immense care taken in their manufacture is an integral outcome of the technological vision that inspires them. Spectral’s style of wide bandwidth, super-fast circuit design requires the finest materials and components, extremely close tolerances, and perfectionist standards of soldering, wire-harnessing, welding, finishing and all the other operations that go into manufacturing and assembly. Design engineers everywhere are constrained not only by the limits of the imaginations and the laws of physics, but by what is practically feasible in production. The Spectral design team enjoys the freedom of being far less constrained than most. Our military – and NASA – certified production technicians, representing decades of cumulative experience in Silicon Valley industry, are the most dedicated and skilled in the audio field today. Working unhurriedly on very limited production runs, they welcome the complex challenges posed for them by Spectral’s innovative product designs.

Purchased parts and components must also meet the same exacting criteria as our in-house production. Spectral searches the world for premium quality suppliers, routinely having parts custom made to our designs and specifications. We carefully screen and hand match components and devices, skimming the créme de la créme for use in our products. Incoming inspections, production quality control and final burn-in and testing are rigorously performed to merciless standards. Every Spectral product that leaves our premises must first pass a personal listening test by Spectral’s president and founder. The goal: that every Spectral unit perform as well as the best of its type we have ever produced.

Some might question whether such fanatical devotion to quality is really worth the effort. Spectral has been described as building “museum-quality” pieces. Our view is that recordings and playback systems are the museum of our musical heritage. It is a boon to all that the contents of this museum are accessible to us in our own homes. And it is our privilege at Spectral to play a role in making them available at the highest possible level of reproduction.

Brand: Spectral Audio

Model Name/Number: DMC12 (Phono) & DMA 100

Price (RRP): £8200

Choice Hifi Price: £5990

Product Information:

DMC-12 Preamplifier
Front Panel Controls
•Input Selector switch
•Balance Control switch
•Output Attenuation control
•Mute switch
•Stereo/Mono switch
•Stereo/Reverse switch
•Tape Monitor switch
•Protection Circuit LED indicator

Internal Controls
•Input Trim 10 dB range for aux 1/phono, aux 2, disc, tuner, tape
•Phono Input Impedance selector (opt.)
•Phono Section Gain selector (opt.)
•High Level Gain selector

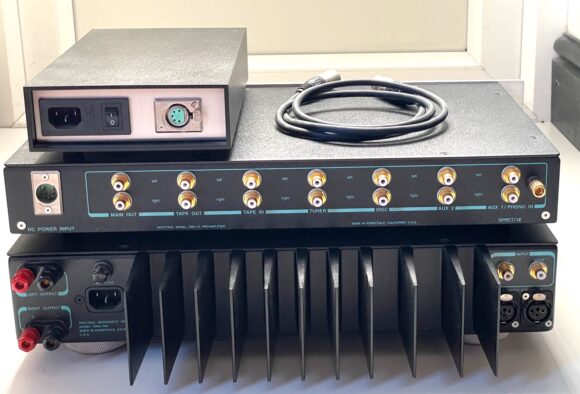

Rear Panel Connectors
•Signal Ground post (gold)
•4 RCA Input connector sets (gold)
•2 RCA Output connectors (gold)
•Tape Input and Output RCA connector sets (gold)
•DC Power Hi-Rel input connector

DMS-12 Power Supply
Front Panel
•Illuminated Power indicator

Rear Panel
•AC Line connector
•DC Power Output connector
•AC Line fuse
•AC Power switch

DMC-12 Preamplifier Technical Data
Input Compliment:

    • 5 Inputs – aux 1, aux 2, disc, tuner, tape, (phono) optional



Output Compliment:

    • 2 outputs – main, tape



Control Compliment
Output Attenuation:

    • 32 step conductive plastic custom pot, modified log taper



Output Balance:

    • Continuous action conductive plastic custom pot with center position



Mute switch:

    • 0, -20 dB attenuation



Input Level Switches:

    • 0 to -10 dB attenuation all inputs



Output Level Switches:

    • 30 dB, 36 dB gain



Mode Switches:

    • Stereo/mono, Stereo/reverse, Tape Monitor



Input Selections:

    • 4 plus tape monitor



Recording Amplifiers
Input Impedance:

    • 11K ohms



Output Inpedance:

    • 2K ohms





DMC-12 Mechanical
Weight:

    • 12 lbs (5 1/2 KG)



Dimensions:

    • 2 1/2″ (6.35cm)H x 19″ (48.26cm)W x 12 1/2″ (31.75cm)D





DMS-12 Mechanical
Weight:

    • 7 lbs (3 1/4 KG)



Dimensions:

    • 2 1/2″ (6.35cm)H x 6″ (15.25cm)W x 10 1/2″ (26.65cm)D





High Level Output Section
Frequency Response:

    • DC to 3 MHz, -3 dB DC to 12.5 MHz, -1.0 dB



Slew Rate:

    • 1200 V/us or greater



Rise Time:

    • 65 nanoseconds



Distortion:

    • Less than 0.02% THD and IM



Crosstalk Rejection:

    • Greater than 90 dB



Noise:

    • 105 dB A Weighted, ref 100 mV @ 1 KHz



Output Voltage:

    • 5.8 VRMS, 16.4V P-P



Output Current:

    • 140 mA per channel



Gain:

    • 30 or 36 dB (selectable)

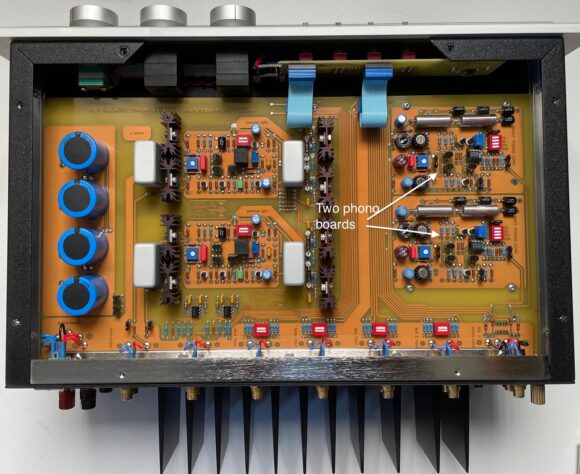

Model 120 Phono Section (optional)
Gain:

    • Continuously variable 20 – 40 dB



Phono Equalization:

    • 0.25 dB, 20 Hz thru 20 KHz



Distortion:

    • Less than 0.01% THD and IM



Noise:

    • 95 dB A Weighted, ref 100 mV @ 1 KHz



Input Impedance:

    • Selectable 10, 30, 100, 800, 47K



Load Capacitance: optional



DMA-100S Stereo Power Amplifier

Power Output:
(continuous)

Stereo:

    • @ 8 ohms – 100 Watts RMS



    @ 4 ohms – 200 Watts RMS

Power Output:
(Minimum at clipping)

Stereo:

    • @ 8 ohms – 159 Watts RMS



    @ 4 ohms – 250 Watts RMS

Output Current:

    • 22 Amps per channel



Frequency Response:

    • ±0.1 dB, DC-150 KHz



    • ±1 dB, DC-1 MHz



    • ±3 dB, DC-1.8 MHz





Distortion:
Static:

    • Less than 0.015% from DC



    • to 100 KHz,



    • typically 0.009% @ 100



    • Watts RMS/8 ohms



Dynamic:

    • 8 Tone Cluster Test 20 KHz



    • @ 500 Hz separation



    • 0.01% 8 ohms



    • 0.015% 4 ohms





Speed:
Rise Time:

    • Less than 300 nanoseconds



Settling:

    • 1.5 microseconds to -40dB



Slew Rate:

    • 1,000 volts/microsecond





Noise:
Signal to Noise:

    • 90dB unweighted, 107dB ASA A



Crosstalk:

    • 80dB @ full power 8 ohms





Input:
Impedence:

    • 10K ohms in parallel with 100 pf



Sensitivity:

    • 1.5 volts/nominal output





Power Supply:
Line Voltage:

    • 100 volts, 120 volts



    • 240 volts (factory wired)



AC Voltage Range:

    • ±10%



Maximum Consumption:

    • 800 Watts



Quiescent Consumption:

    • 125 Watts





Operating Temp:

    • 0° to 50° Celsius range



    • 32° to 122° Farenheit





Protection Features:
DC Protection Servo:

    • 0.5 volt range



Current Limit Onset:

    • 22 Amps



Thermal Threshold:

    • 85° Celsius, 185° Farenheit



AC Main Fuse:

    3A/3AG slo-blow



Size and Weight:
Dimensions:

    • 19″ (48.2cm)W,



    • 4″ (10.1cm)H,



    • 15.5″ (39.4cm)D



Weight:

    32 lbs, 14.5 KG Net



Age: 19 Years

Condition: 9/10

Voltage: 220/240/50Hz

Finish/Colour: Silver/black

Packaging? Yes

Accessories? Yes

Item Location: In Stock

Status: X-Demo

Dimensions 5708473 cm
